Line graphs

Creating a Line Graph

To create a line graph use the + icon in a group and create a graph. Select line graph and give your graph a name.

Time Window Configuration

To control the window of time that this graph will show on the X axis use the Sample size and sample ending at controls. By default line graphs always end at the last data point and will update automatically as you track more data. If you want to fix your graph at a certain point in time you can change "Sample ending at" to a custom date.

Adding Lines to Your Graph

Next add one or more lines to your graph by tapping the + bar at the bottom:

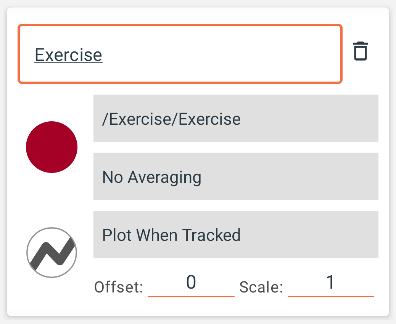

The name at the top will be shown in the graph key, it defaults to the name of the feature.

On the left you can select the colour of the line and the style of the line.

In the middle there are 3 inputs:

• At the top is the feature. If you tap this box you can select a feature, by it's path from the root group to the feature.
• Next is the averaging period. If you select an averaging period each data point on the line will show as the mean of its self and all data points within the selected period prior.
• Finally is the plot total setting. This will be explained more below but essentially it will force the line to have a regular distribution of points on the X axis and will use the sum of all data points in the given period as the value on the Y axis. At the bottom is the Offset and Scale.

Understanding Data Processing Order

The order of operations is as follows:

1. First your data is converted to totals using the plot total setting
2. Then each point is converted to its moving average using the moving average setting
3. Then each point is multiplied by the scale value
4. Finally the offset is added, shifting the entire line up or down on the Y axis

Plot totals and Moving averages

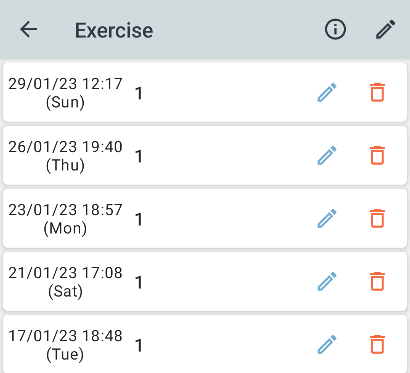

If for example you were to track when ever you exercise using only a value of 1 like so:

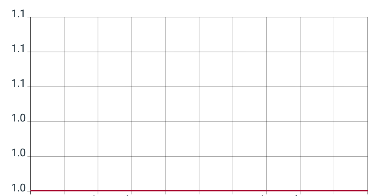

You would find when you came to draw a graph of that data that the line draws simply as a straight line at the point 1 on the Y axis:

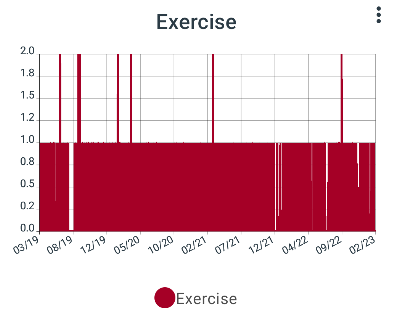

What you are most likely interested in is how many times you exercised each day, week, or month. To draw this line instead change the plot total setting from "Plot when tracked" to for example "Daily total". This setting will take the total of all values tracked per day and plot that on the graph with one point at the end of each day.

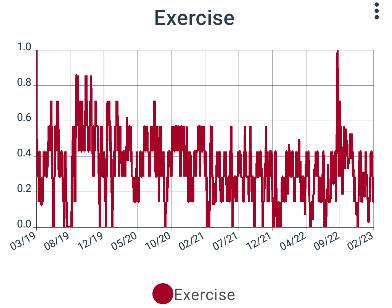

This graph is quite precise but still far too noisy to really make sense of. The line mostly jumps between values of 1 and 0. However if you now change the moving average setting to weekly you can see something more helpful:

Don't forget the data is first converted to periodic totals and then a moving average of those totals.

Combining Multiple Data Series

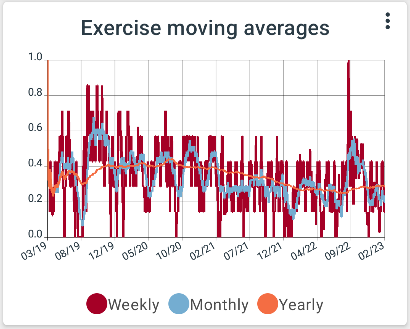

You can add multiple lines to the same graph to get a better overview of your data.
